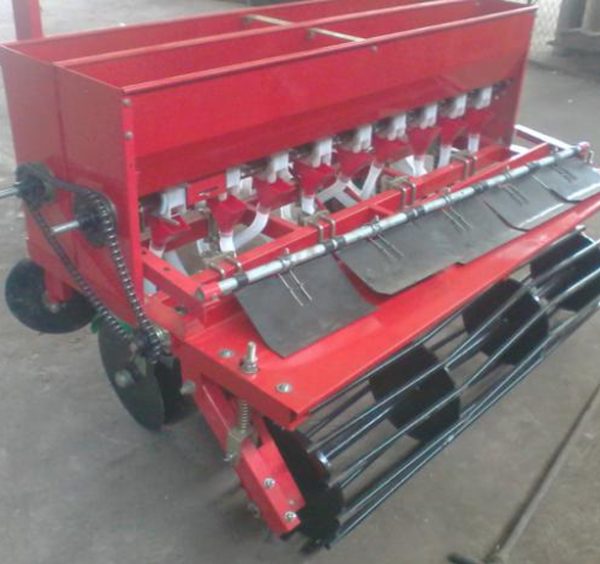

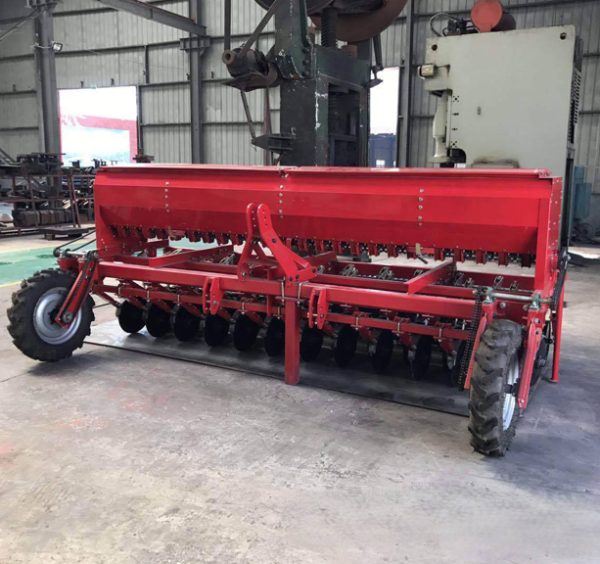

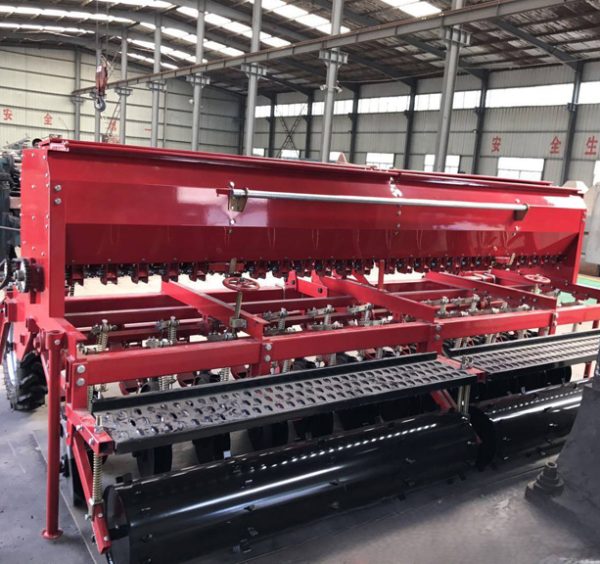

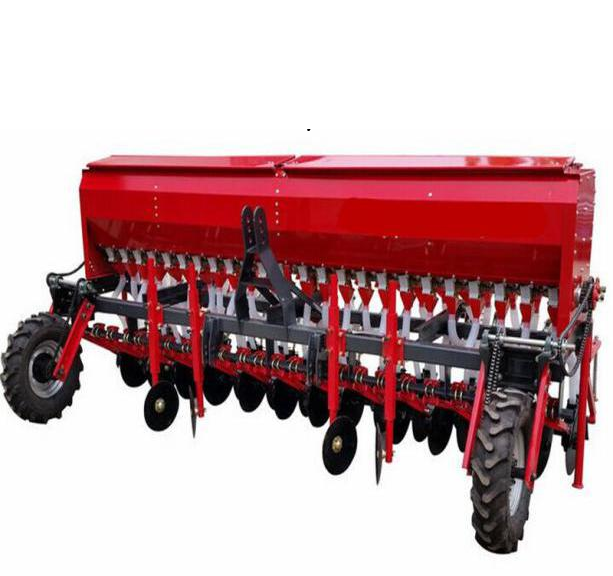

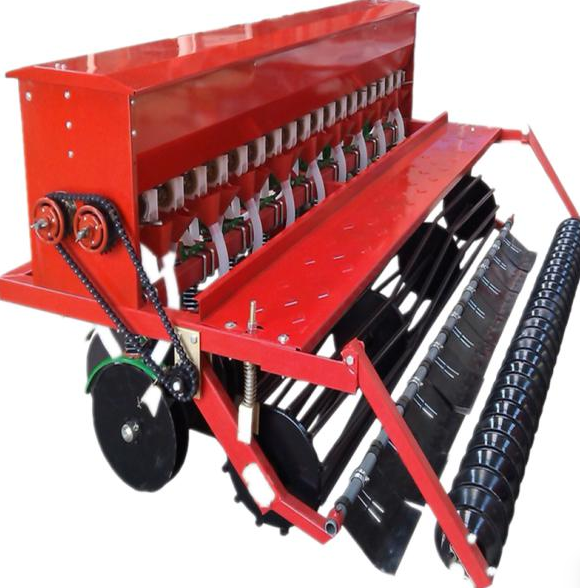

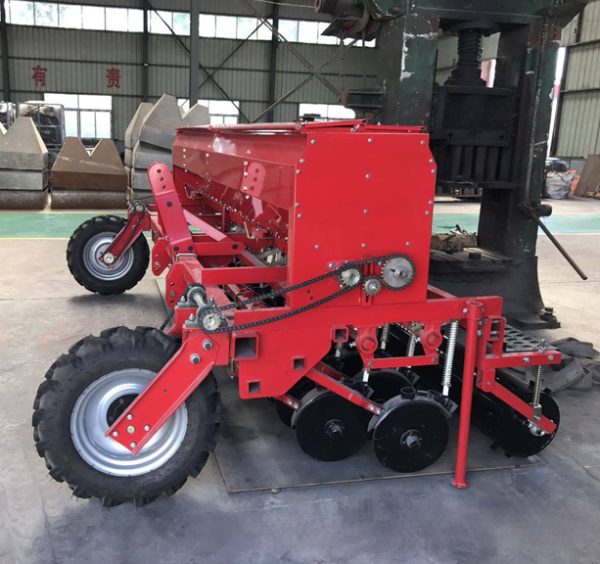

wheat planter is a multi-function seeder, suitable for drilling wheat, sorghum, grass etc.
crops, combine the function of leveling, furrowing, sowing, fertilizing, covering at the same time.
It drills seeds and fertilizer together but delivers them separately in single drive. Seeds and fertilizer are drilled at different depths thus improves germination. The 24 lines wheat planter is equipped with rubber tires, driven by the chain in drive part and also has the feature of seeding uniformity,high working efficiency, saving seeds, and the depth of seeding can be regulated and controlled, the row spacing is stable.
| Model | Matched horse power (hp) |
Weight (kg) |
Seeding width (mm) |
Seeding rows | Row distance (mm) |
Seeding depth (mm) |
Linkage method |
| NKWS-9 | 15-18 | 220 | 1350 | 9 | 150 | 40-80 | 3 pointed suspension |
| NKWS-12 | 20-30 | 285 | 1800 | 12 | 150 | 40-80 | |
| NKWS-14 | 30 | 310 | 2100 | 14 | 150 | 40-80 | |
| NKWS-16 | 50 | 650 | 2400 | 16 | 150 | 40-80 | |
| NKWS-18 | 60-80 | 680 | 2700 | 18 | 150 | 40-80 | |
| NKWS-24 | 70-100 | 1080 | 3600 | 24 | 150 | 40-80 |
