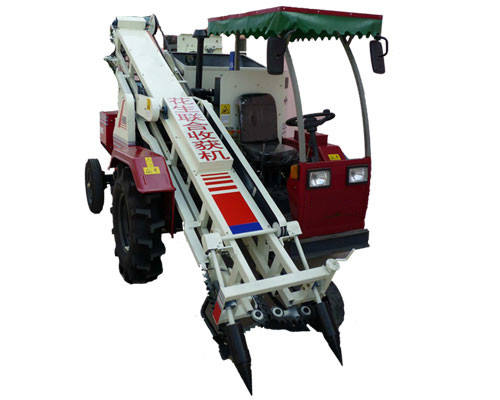

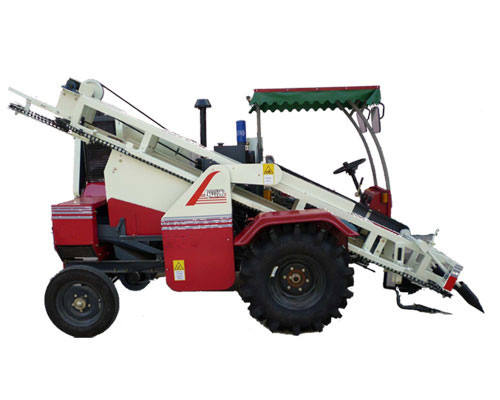

Combined 2 rows Peanut Harvester is a kind of self-propelled combine harvester for peanut, which consists of gripping, digging, conveying, soil clearing, picking, screening and collecting. It has advantages of working smoothly, efficient and low leakage rate.
Combined 2 rows Peanut Harvester is a kind of self-propelled combine harvester for peanut, which consists of gripping, digging, conveying, soil clearing, picking, screening and collecting. It has advantages of working smoothly, efficient and low leakage rate.
1.When the harvester moves forward, the digger blades get into the ground and dig the peanut along with lifting the grain by the grain lifter.
2.The peanut plants are gripped and conveyed up and behind by gripping chain.
3.The root of peanut plant enters the picker. The peanuts are picked by two counter rotating rollers with long scraper.
4.The peanut straws are conveyed continually and laid neatly on the harvested ground by the plant dump chain.
5.The peanuts are separated with the soil and wastes by blower and vibrating screen. Then they are conveyed to storage hopper by traversing conveyor, lifter and screw conveyor. Then we get peanuts from the hopper.
1.Hydraulic discharge hopper makes discharging more convenient. The peanuts can be poured on the agricultural vehicle directly.
2.No need outside power to drive, which makes operation easier and saves the costs of loading vehicles and transporting vehicles.
3.When operating, the machine walks in the ridge furrow and do not run over the ridge surface, which is benefit for recycling of fallen peanuts and planting of next season.
| Model | NKPH-2R |
| Structure type | Self-propelled,wheels type,half feeding |
| Machine weight | 1950kg |
| Matched power | 22.1kw |
| Application planting mode | 2 rows planting on one ridge |
| Application planting row distance | 250±50cm |
| Application planting ridge distance | 800±50cm |
| Working efficiency | 0.1-0.2hec/hour |
| Machine size | 4850*1850*2270mm |
| Application planting situation: ridge height 10±5cm,ridge distance 80±5cm,ridge ditch width 25±5cm,row distance≤25cm. |
|
This machine besides having the functions of digging, fruit removal, cleaning,
collecting which peanut combine harvester should possess,
it has following advantages:
1. it can open its way by itself, which saves time and cost of opening ways by man.
2. no need outside power to haul or transportation, convenient and swift transfer,
which saves troubles of loading vehicle and cost of transporting vehicles.
3. when harvesting, vehicles walks in the ridge furrow, do not press the ridge surface,
which facilitate recycling of fallen fruits and reproduction.
4. simple structure, low cost of using, convenient repair and maintenance.

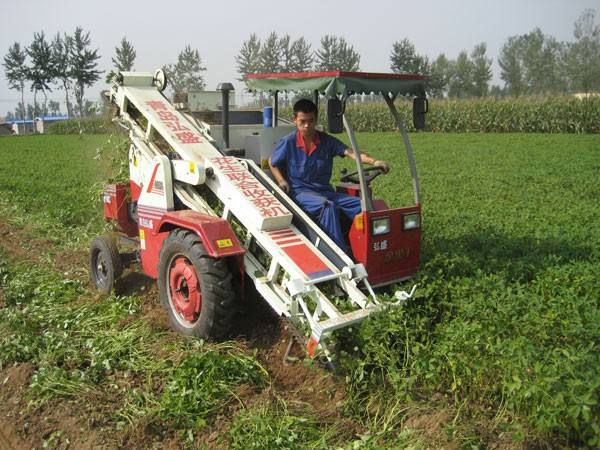

The harvesting test pictures are as following:

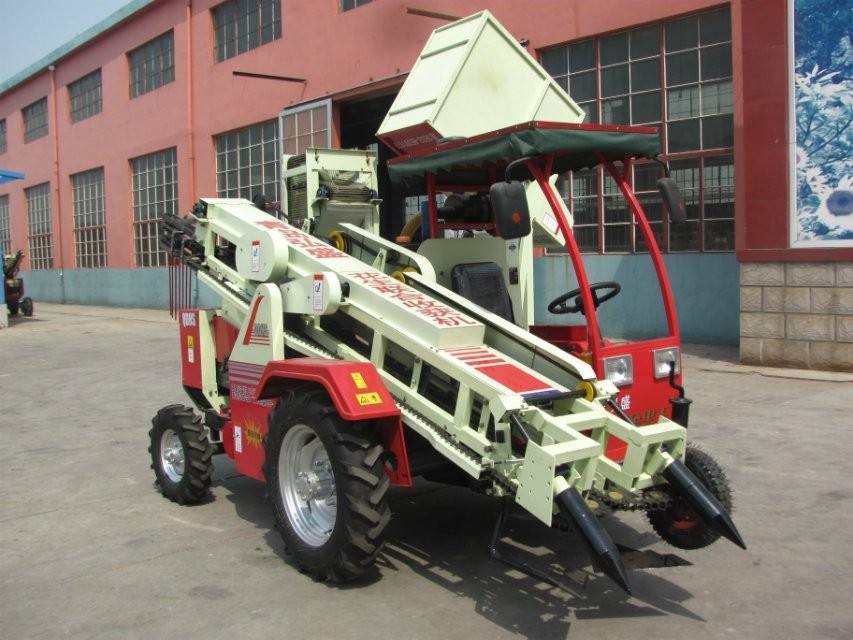

The factory workshop pictures:
The foreign clients come to visit our factory and give a high appraisement:
